It is the company's top product: the use of this particular instrumentation allows to obtain from the ground a complete information panorama concerning horizontal and vertical deformations, changes in groundwater levels, pore pressure, vibrations and accelerations.

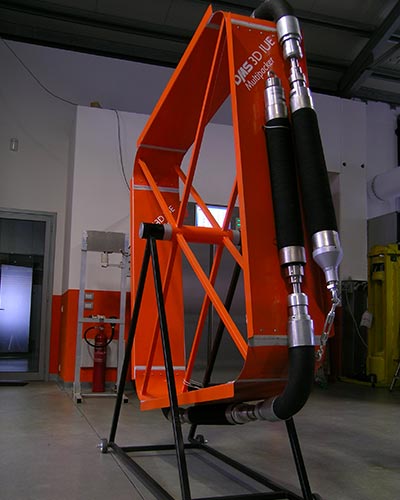

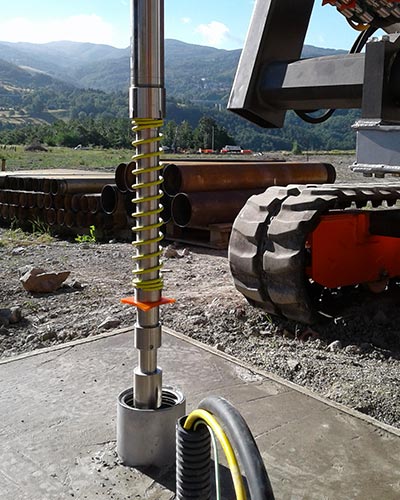

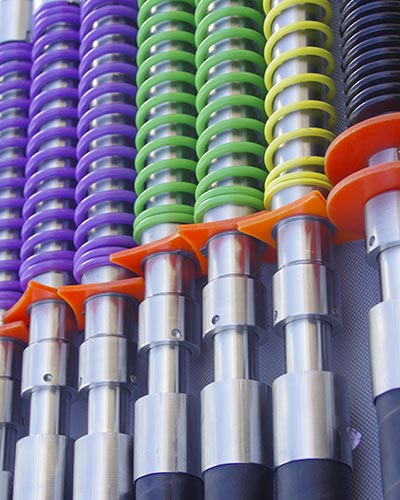

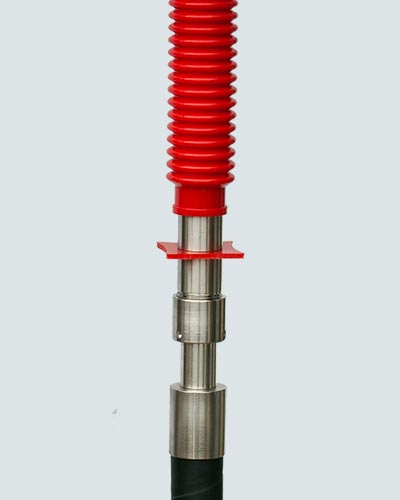

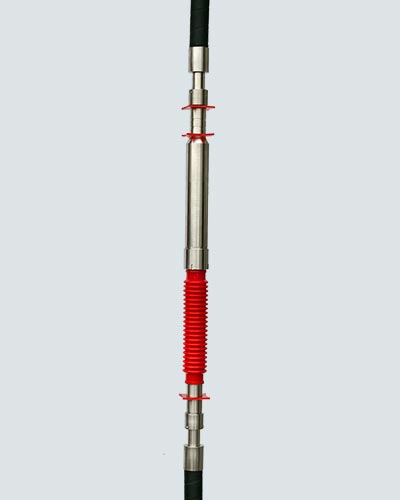

The DMS 3D Multipacker is specifically designed to faithfully copy horizontal and vertical displacements inside uncased borehole thanks to the constraints generated by the expansion of special packers against the walls. The DMS 3D line has recently been enriched with the new DMS 3D Plus, the instrument that, in association with special corrugated borehole conditioning pipes, allows to monitor horizontal and vertical deformations, water levels, temperature and accelerations, maintaining full compatibility with the 2D DMS series.
Each module is equipped with one or more of the following sensors:
- Biaxial inclinometric sensor (I);
- Piezometric sensor (U);
- Extensometric sensor (E)
- Triaxial accelerometric sensor (A);
- Temperature sensor (T);
- Digital compass (M).
